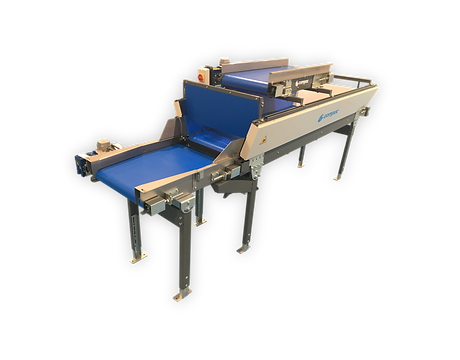

FRUIT ACCUMULATOR
The fruit accumulator is usually used when a continuous flow of fruit to a machine is required, such as an automatic packing machine, a netbag machine or a box weigher-filler machine.
The machine consists of a lower conveyor belt and two inclined side belts, located symmetrically with respect to the first.
Between the three tapes there is a space where the fruit will accumulate, as a deposit for the feeding of the next section.
BOX WEIGHER-FILLER
The box weigher-filler is a machine that is used for filling bulk boxes with a predetermined weight, at the exit of the sizer. The weighing and filling of the boxes is done simultaneously and in motion. A progressive and uniform filling is achieved by moving the carton as it is completed.
FRUIT COUNTER
The fruit counting machine is a machine prepared for controlling fruit units. It can also be used to place fruit labels.
It consists of two independent lines driven by motors. The product is positioned by the rotation of the grummets and the action of the brush in the beginning. The unit dosage is controlled by proximity-sensing photocells.
VOLUME FILLING SYSTEM
Automatic system for filling bulk boxes by volume. It is composed of two machines: a conveyor belt for fruit infeed (which can be the same as the extraction conveyor from the sizer or a separate one) and a chain conveyor equipped with pneumatic side bumpers to fasten the carton in the filling. These conveyors act according to the volumetric photocell that indicates the maximum level of filling.
WEIGHT HOPPER
The weight hopper is a fruit weighing machine that moves the fruit away from the packaging line such as rejects or other type of line rejection.
It is equipped with a tilting output drop for bin filling and can be connected electronically with the sizer, to discount the kilos that are passed through the hopper of the total production in an automated way.
CRATES DEVIATOR
This crate diverter machine is used in palletizing systems of ready-made crates, where a solution of crates output at 45 degrees has been designed.
This solution allows us to divert the cartons of a motorized roller conveyor directly to the palletizer, through a transfer, a control with photocell and a roller turning point.
PACKING
Compac Spain packs a variety of produce using a range of different packing methods. Our solutions are highly customizable to cater to the demands of various packhouses and their produce.
RAPID-PACK
This crate diverter machine is used in palletizing systems of ready-made crates, where a solution of crates output at 45 degrees has been designed.
This solution allows us to divert the cartons of a motorized roller conveyor directly to the palletizer, through a transfer, a control with photocell and a roller turning point.
